Khoom Description

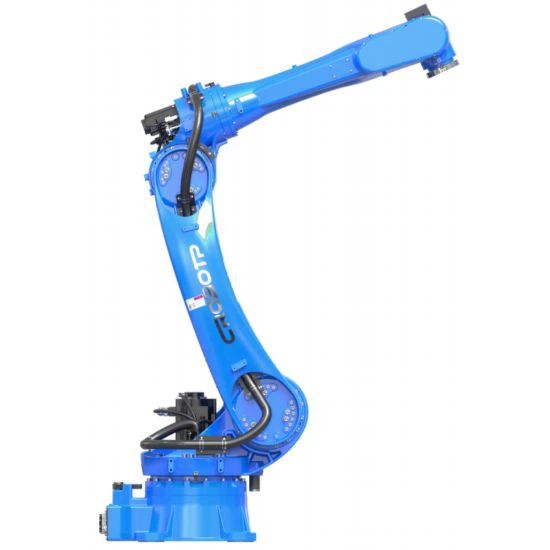

CRP-RA27-50 muaj neeg hlau yog tsim los rau kev tuav cov ntaub ntawv zoo thiab meej palletizing. Txawm hais tias ua tiav cov kab ntau lawm loading / unloading, sorting, assembling, los yog complex palletizing cov hauj lwm, CRP-RA27-50 muab kev kub ceev thiab rov ua dua qhov tseeb qhov tseeb kom ua tau zoo tshaj plaws. Nws cov kab hluav taws xob sib xyaw ua ke thiab cua tshuab hluav taws xob, ib qho qauv cantilever, thiab ntau yam kev nyab xeeb ua kom muaj kev ntseeg siab thiab ua kom yooj yim rau kev sib koom ua ke thiab kev saib xyuas, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev txhim kho lub Hoobkas automation thiab kev tsim khoom.
Functional Features
● Kev ua tau zoo & Kev ua haujlwm loj
Lub caj npab ntev 2.7-meter muab lub peev xwm thauj khoom muaj zog thiab kev ua haujlwm dav, kom ntseeg tau yooj yim ntawm kev siv cov khoom tuav thiab palletizing cov haujlwm.
● High Speed, Precision, thiab Versatility
Nrog nws cov kev khiav hauj lwm ceev ceev thiab siab rov ua tau zoo, nws yog qhov tsim nyog rau ntau yam kev siv, suav nrog kev thauj khoom thiab tshem tawm, tuav, txheeb xyuas, thiab sib dhos, thiab tshwj xeeb tshaj yog ua tau zoo ntawm palletizing zoo.
● Dual -Kev ruaj ntseg Circuit Court
Nruab nrog lub vaj huam sib luag nres thaum muaj xwm txheej ceev uas tsis muaj kev tswj hwm thiab siv qhov kev nyab xeeb relay Circuit Court, nws muab ob lub-circuit nres ua haujlwm kub ntxhov, ua kom cov khoom siv thiab cov neeg ua haujlwm muaj kev nyab xeeb thiab ua kom ruaj ntseg nres thaum muaj xwm ceev.
● High-Txoj Kev Tshwj Xeeb Cables
Lub cev neeg hlau siv siab - yooj yooj yim cables tshwj xeeb kom haum raws li kev txav mus los, txhim khu kev ruaj khov thiab kev ntseeg tau.
● Kev ua tau zoo EMC/EMI zoo heev
Ib qho ua tau -nyob rau hauv peb-theem lim zoo txhim kho electromagnetic compatibility (EMC) thiab electromagnetic cuam tshuam (EMI) kev ua tau zoo, ua kom cov neeg ua haujlwm ruaj khov.
● Integrated Dual -Circuit Gas Supply
Cov neeg hlau tau nruab nrog ID10 dual- cov khoom siv hluav taws xob hauv hluav taws xob, ua tau raws li qhov xav tau ntawm huab cua xav tau ntawm cov cuab yeej pneumatic lossis cov khoom siv siv hauv kev ua haujlwm nyuaj.
● Lub teeb yuag & Agile Ib leeg Cantilever Tsim
Ib qho qauv cantilever zoo txo qhov kawg -effector hnyav, txhim kho kev txav tau yooj yim thiab ceev. Qhov no nthuav dav cov kev xaiv rau qhov kawg effectors (grippers), cov cuab yeej, thiab cov duab ua haujlwm.
● Sab hauv Cable & Gas Routing
Sab hauv cable thiab roj routing tsim nta hollow channel nyob rau hauv nruab nrab ntawm lub forearm thiab dab teg, tso cai rau cables thiab roj routing khiav ntawm lub hauv paus neeg hlau mus rau dab teg. Qhov no ua rau cov neeg siv kev sib txuas yooj yim dua, txo qhov kev pheej hmoo ntawm kev cuam tshuam, thiab txhim kho kev ua haujlwm zoo.
● High Expandability thiab yooj yim installation
Cov neeg hlau nta ib tug multi-neeg siv mounting platform, muab tshwj xeeb expandability thiab yooj yooj yim kom haum raws li ntau yam auxiliary cuab yeej, tso cai rau customized kev koom ua ke raws li cov neeg siv xav tau kev pab.
Neeg hlau lub cev Technical Parameters
|
Qauv |
CRP{0}}RA27-50 |
|
|
Arm daim ntawv |
Vertical ntau pob qij txha |
|
|
Degree ntawm kev ywj pheej |
6 axis |
|
|
Maximum payload |
80kg ua |
|
|
Kev mus ncig siab tshaj plaws |
Axis 1 |
-180℃~ 180 degree |
|
Axis 2 |
-160℃~ 75 degree |
|
|
Axis 3 |
-80℃~ 165 degree |
|
|
Axis 4 |
-170℃~ 170℃(nrog kev txwv tsis pub siv tshuab) |
|
|
Axis 5 |
-125 ° ~ 125 ° C |
|
|
Axis 6 |
-360℃~ 360 degree |
|
|
Qhov ceev tshaj plaws |
Axis 1 |
130℃/ S |
|
Axis 2 |
125℃/ S |
|
|
Axis 3 |
124℃/ S |
|
|
Axis 4 |
224℃/ S |
|
|
Axis 5 |
190℃/ S |
|
|
Axis 6 |
285℃/ S |
|
|
Tso cai torque |
Axis 4 |
231N.m |
|
Axis 5 |
231N.m |
|
|
Axis 6 |
135N.m |
|
|
Tso cai lub sij hawm ntawm inertia |
Axis 4 |
27.34 Kg2 |
|
Axis 5 |
27.34 Kg2 |
|
|
Axis 6 |
12.30 Nws2 |
|
|
Neeg hlau lub cev hnyav |
7 28kg |
|
|
Qhov siab tshaj qhov deb |
2 680mm |
|
|
Rov ua dua qhov tseeb |
± 0.08 hli |
|
|
Kev teeb tsa hom |
Pem teb, upside down mounting, phab ntsa mounting |
|
|
Lub suab nrov |
80dB (A) |
|
|
Lub cev interface |
Reserved IO |
16 Pin |
|
Khaws cia roj |
2 * φ12mm |
|
|
Kev teeb tsa ib puag ncig |
Ambient kub |
0 ~ 45 degree |
|
txheeb ze humidity |
20% ~ 80% RH (tsis muaj condensing) |
|
|
Kev vibration |
Hauv qab 0.5 G |
|
|
Lwm tus |
Robot installation yuav tsum nyob deb ntawm: flammable los yog corrosive kua los yog gases, hluav taws xob qhov chaw ntawm kev cuam tshuam |
|
|
IP qib |
Lub cev IP54, Lub dab teg IP67 |
|
|
Advantage nta |
Compact qauv, kev kub ceev, siab precision, siab expansibility thiab ua haujlwm yooj yim |
|
|
Daim ntawv thov |
Kev tuav, sib dhos, kos npe, sib tsoo |
|
|
Electric txee configuration |
G15A |
|
Installation Interface Diagram
Motion Range Diagram
FAQ
Q: Puas yog tus neeg hlau no qhov siab tshaj plaws ncav cuag thiab them nyiaj tsim nyog rau kev tuav cov khoom hnyav?
A: Yog. CRP-RA27-50 cov khoom tuav thiab palletizing neeg hlau yog tsim tshwj xeeb rau cov ntawv thov kev lag luam. Nrog rau qhov ncav cuag ntawm 2.7 meters thiab lub peev xwm them nyiaj muaj zog, nws tuaj yeem ua haujlwm zoo thiab palletize cov khoom hnyav thiab cov thawv, npog qhov chaw ua haujlwm dav.
Q: Nws puas tuaj yeem ua tau raws li -precision palletizing qhov yuav tsum tau ua?
A: Yog lawm. Cov neeg hlau no boasts siab repeatability thiab ceev ceev, kom ntseeg tau meej stacking txoj hauj lwm (xws li palletizing). Nws yog qhov tsim nyog rau kev sib dhos, sib cais, thiab siab -kev ua haujlwm hnyav palletizing hauv siab - cov kab ntau lawm.
Q: Kev tsim kev nyab xeeb li cas kom ntseeg tau tias muaj xwm txheej ceev?
A: Cov neeg hlau tau nruab nrog lub vaj huam sib luag ruaj ntseg nres thaum muaj xwm ceev (sib cais los ntawm kev tswj hwm) thiab siv dual -circuit stop design (safety relay circuit). Tig ob lub voj voog tam sim ntawd kaw cov neeg hlau, muab kev tiv thaiv kev nyab xeeb dual rau cov khoom siv.
Q: Dab tsi yog cov txiaj ntsig ntawm kev sib xyaw ua ke ntawm huab cua thiab cable tsim rau cov neeg siv?
A: Los ntawm lub hollow channel nyob rau hauv forearm thiab dab teg, cov cables thiab ID10 dual-circuit cua Circuit Court yog ua ke los ntawm lub hauv paus mus rau qhov kawg ntawm dab teg. Qhov zoo muaj xws li:
Tshem tawm sab nraud cable entanglement, txhim kho tuav yooj
Txo kev txij nkawm zaus thiab txhim kho palletizing efficiency
Direct air circuit support rau grippers simplifies kawg - ntawm - kab tooling integration
Q: Ib qho - caj npab qauv txhim kho kev ua tau zoo li cas?
A: Ib qho - caj npab qauv txo qhov kawg- ntawm - kab hnyav, ua rau cov neeg hlau hloov tau yooj yim thiab teb thaum tuav thiab palletizing ua haujlwm. Nws kuj tseem nthuav dav kev sib raug zoo nrog cov grippers, cov cuab yeej, thiab kev cai- zoo li tus workpieces, hloov mus rau ntau hom workpiece tuav cov kev xav tau.
