Kev taw qhia thiab cov yam ntxwv ntawm Robot
CRP-RA09A-07(T3) feem ntau yog kho rau kev tsim khoom thiab kev siv ntawm PCB pawg thawj coj saib kev lag luam. Nws yog siv nyob rau hauv lub loading thiab unloading txheej txheem ntawm PCB board kev lag luam. Txhawm rau hloov mus rau PCB kev lag luam, CRP neeg hlau nrog lub teeb yuag. Daim ntawv thov yooj yim, kev kub ceev thiab tus nqi qis yog tsim los ua kom tau raws li qhov xav tau ntawm cov neeg siv khoom rau cov neeg hlau.
Functional Features
- Axis 2 txais cov qauv txuas ncaj qha los txhim kho qhov tseeb:
- Lub cev muaj zog thiab reducer txais kev sib txuas spline kom ruaj khov dua
- Txais cov qauv tsim kom zoo kom tsis txhob cuam tshuam thiab ua tau raws li qhov xav tau ntawm daim ntawv thov hauv qhov chaw nqaim;
- Compact qauv thiab ntim me me
- Lub teeb yuag thiab ceev ceev
Neeg hlau lub cev Technical Parameters
|
Qauv |
CRP{0}}RA09A-07(T3) |
|
|
Arm daim ntawv |
Vertical ntau pob qij txha |
|
|
Degree ntawm kev ywj pheej |
6 axis |
|
|
Maximum payload |
7kg ua |
|
|
Kev mus ncig siab tshaj plaws |
Axis 1 |
/ |
|
Axis 2 |
-135℃~ 100 degree |
|
|
Axis 3 |
-62℃~ 180 degree |
|
|
Axis 4 |
/ |
|
|
Axis 5 |
-125℃~ 125 degree |
|
|
Axis 6 |
/ |
|
|
Qhov ceev tshaj plaws |
Axis 1 |
/ |
|
Axis 2 |
297.5℃/ S |
|
|
Axis 3 |
426.5℃/ S |
|
|
Axis 4 |
/ |
|
|
Axis 5 |
450℃/ S |
|
|
Axis 6 |
/ |
|
|
Tso cai torque |
Axis 4 |
/ |
|
Axis 5 |
6.2N.m |
|
|
Axis 6 |
/ |
|
|
Tso cai lub sij hawm ntawm inertia |
Axis 4 |
/ |
|
Axis 5 |
0, 38kg |
|
|
Axis 6 |
/ |
|
|
Rov ua dua qhov tseeb |
± 0.03 hli |
|
|
Qhov siab tshaj qhov deb |
8 76mm |
|
|
Neeg hlau lub cev hnyav |
37kg ua |
|
|
Kev teeb tsa hom |
Upside down mounting |
|
|
Lub suab nrov |
75dB (A) |
|
|
Lub cev interface |
Reserved IO |
19 Pin |
|
Khaws cia roj |
2 * φ6mm |
|
|
Kev teeb tsa ib puag ncig |
Ambient kub |
0 ~ 45 degree |
|
txheeb ze humidity |
20% ~ 80% RH (tsis muaj condensing) |
|
|
Kev vibration |
Hauv qab 0.5 G |
|
|
Lwm tus |
Robot installation yuav tsum nyob deb ntawm: flammable |
|
|
IP qib |
Lub cev IP54, Lub dab teg IP67 |
|
|
Advantage nta |
Compact qauv, kev kub ceev, siab precision, siab expansibility thiab ua haujlwm yooj yim |
|
| Daim ntawv thov | RCB thauj cov tshuab tshwj xeeb | |
|
Electric txee configuration |
G11 |
|

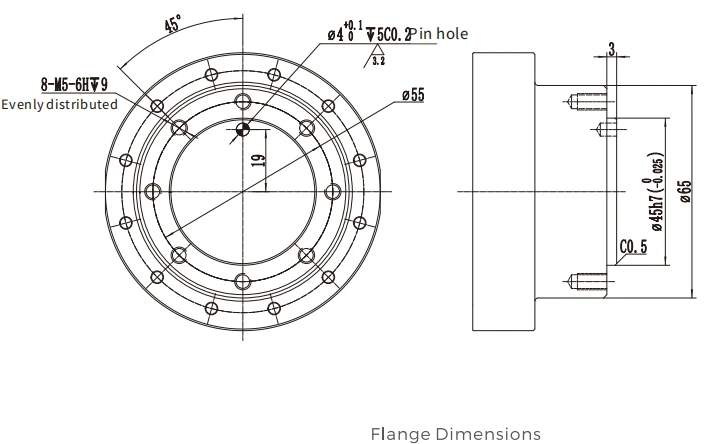

Installation Interface Diagram
Motion Range Diagram
FAQ
Q: Dab tsi yog cov ntawv thov tseem ceeb ntawm Crp Small 3-Axis Handling Robot (CRP-RA09A-07 (T3))?
A: CRP-RA09A-07 (T3) feem ntau yog tsim los rau kev siv ntau lawm hauv PCB kev lag luam, tshwj xeeb tshaj yog rau kev thauj khoom thiab thauj khoom. Nws ua tau raws li kev lag luam qhov kev thov rau cov khoom siv tau zoo thiab meej, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau PCB cov tuam txhab nrhiav kev txhim kho lawv cov peev xwm automation.
Q: Cov neeg hlau no ua li cas kom ua tau siab -kev ua haujlwm zoo?
A: Tus neeg hlau thib ob axis siv tus qauv ncaj qha - txuas, uas txo cov kev sib kis tsis zoo thiab txhim kho kev ua haujlwm raug. Tsis tas li ntawd, lub cev muaj zog thiab reducer siv cov kev sib txuas spline rau kev xa hluav taws xob ruaj khov, ntxiv kom ntseeg tau tias tus neeg hlau qhov tseeb thaum tuav.
Q: CRP-RA09A-07 (T3) ua li cas hauv qhov chaw kaw?
A: CRP-RA09A-07 (T3) muaj cov qauv tsim kho kom zoo kom tsis txhob cuam tshuam nrog cov khoom siv nyob ib puag ncig. Nws qhov loj me me tso cai rau kev ua haujlwm hloov tau yooj yim txawm tias nyob hauv qhov chaw kaw, zoo kawg nkaus ua tau raws li qhov chaw tsim khoom tsim khoom ntawm PCB kev lag luam.
Q: Dab tsi yog tus nqi zoo ntawm cov neeg hlau no piv rau lwm cov khoom zoo sib xws?
A: CRP-RA09A-07 (T3) yog lub teeb yuag, qis- tus nqi neeg hlau. Nws ua kom yooj yim rau cov txheej txheem thov thiab tshem tawm cov haujlwm nyuaj thiab cov qauv tsis tsim nyog. Thaum ua kom muaj kev ua haujlwm siab - nrawm thiab kev ua haujlwm siab, nws txo qis cov nqi khoom thiab muab cov neeg siv khoom muaj txiaj ntsig zoo dua rau cov nyiaj.
Q: Yuav ua li cas cov neeg hlau "lub teeb yuag thiab kev kub ceev" cov yam ntxwv tau txais txiaj ntsig tiag tiag?
A: Lub teeb yuag tsim ua rau CRP-RA09A-07 (T3) hloov tau yooj yim dua, tso cai rau kev nrawm dua thiab nrawm dua, ua rau kev tuav ceev. Nws qhov kev kub ceev txo qis lub sijhawm yuav tsum tau thauj khoom thiab tshem tawm PCBs, nce cov khoom siv los ntawm ib lub sijhawm thiab txhim kho kev tsim khoom hauv PCB kev lag luam.
